Gas fired ceramic infrared heater 34.8 kW SBC 12 + 12 (1)

Go to Product feedback

Shipping

from $140.32 - Geis Palette 80x60 (Andorra)

$1,335.80

Quantity

szt.

Availability:

low stock

Shipping time: 14 days

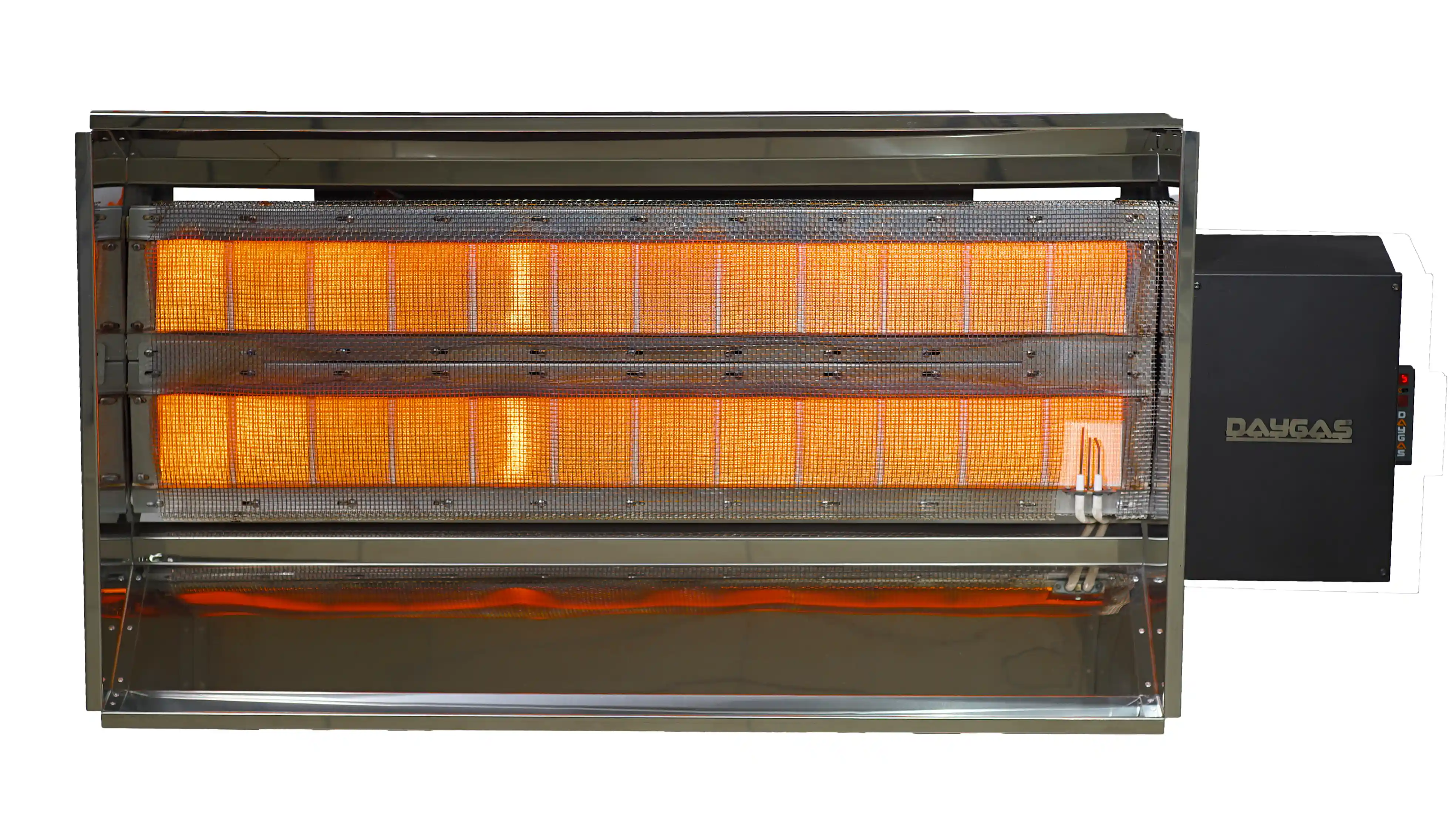

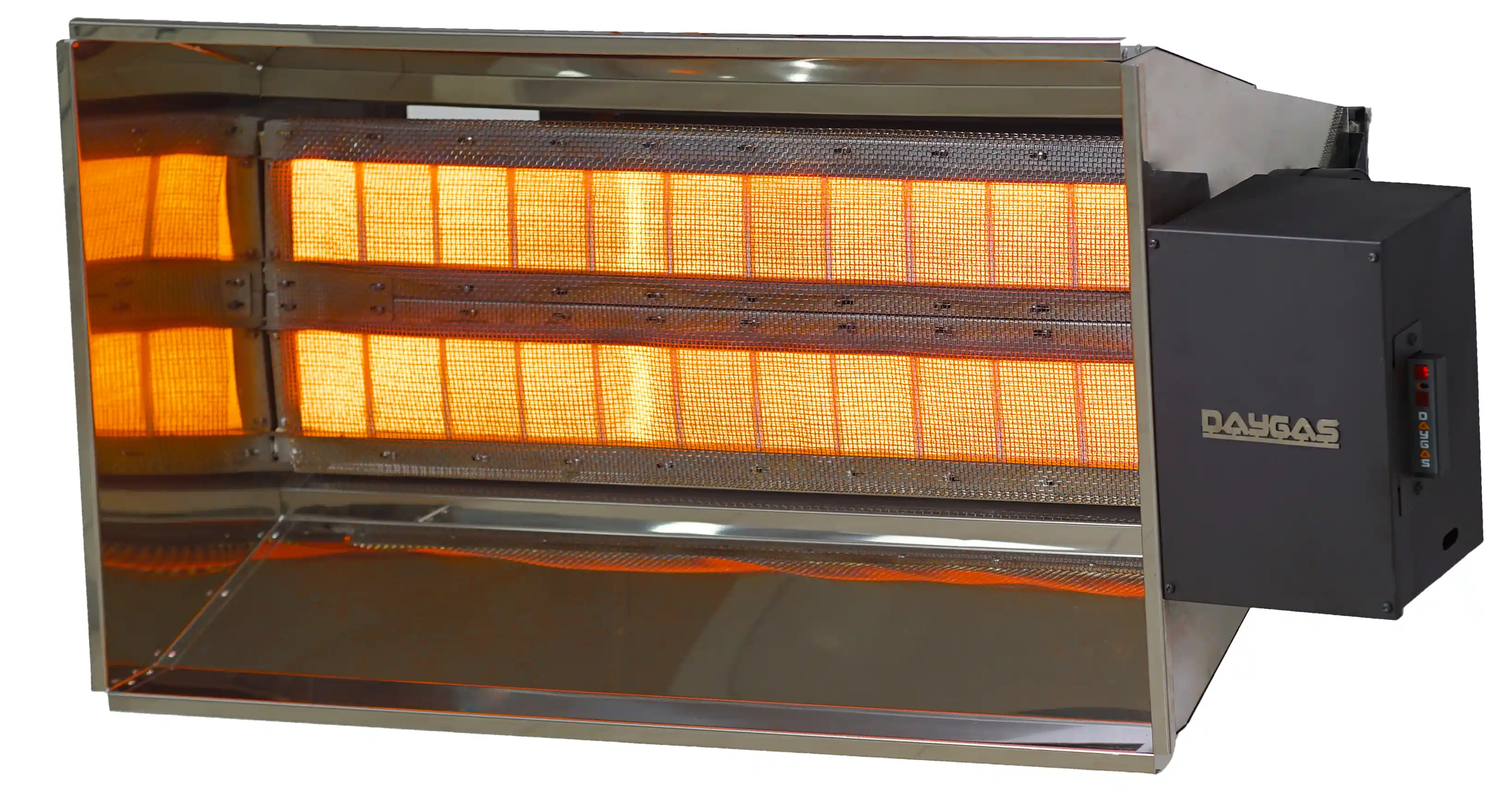

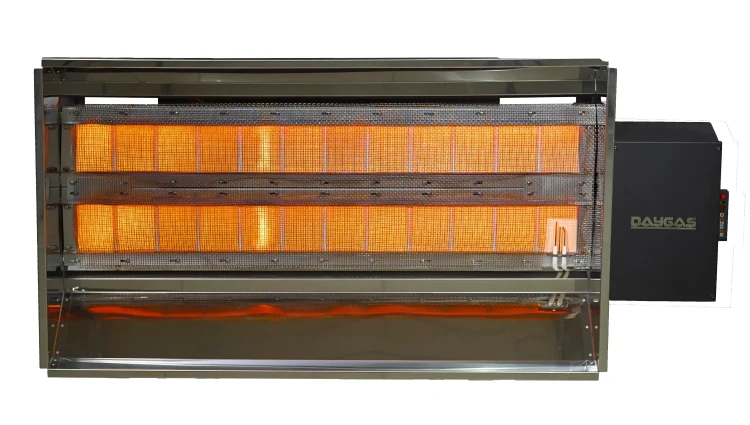

34.8 kW gas heater SBC 12 + 12

Gas, ceramic infrared heater with a power of 34.8 kW.

The 34.8 kW SBC 12 + 12 gas heater is a completely new, innovative and cheap heating product. It is characterized by high radiation efficiency and low gas consumption.

The radiator is a self-sufficient device, it does not require flue gas discharge and is lightweight, allowing a significant reduction in installation costs compared to other heating systems.

Radiant heating consists in the transmission of heat from a warmer radiator to bodies with a lower temperature. The high energy efficiency of the process and low gas consumption is possible due to the almost lossless conversion of the initial energy into the energy of the electromagnetic wave, which without encountering air resistance heats the specific surface and people staying on it.

Infrared radiation after contact with the skin is immediately converted into heat, which feeling similar to the heat of the sun's rays conditioning high and pleasant thermal comfort.

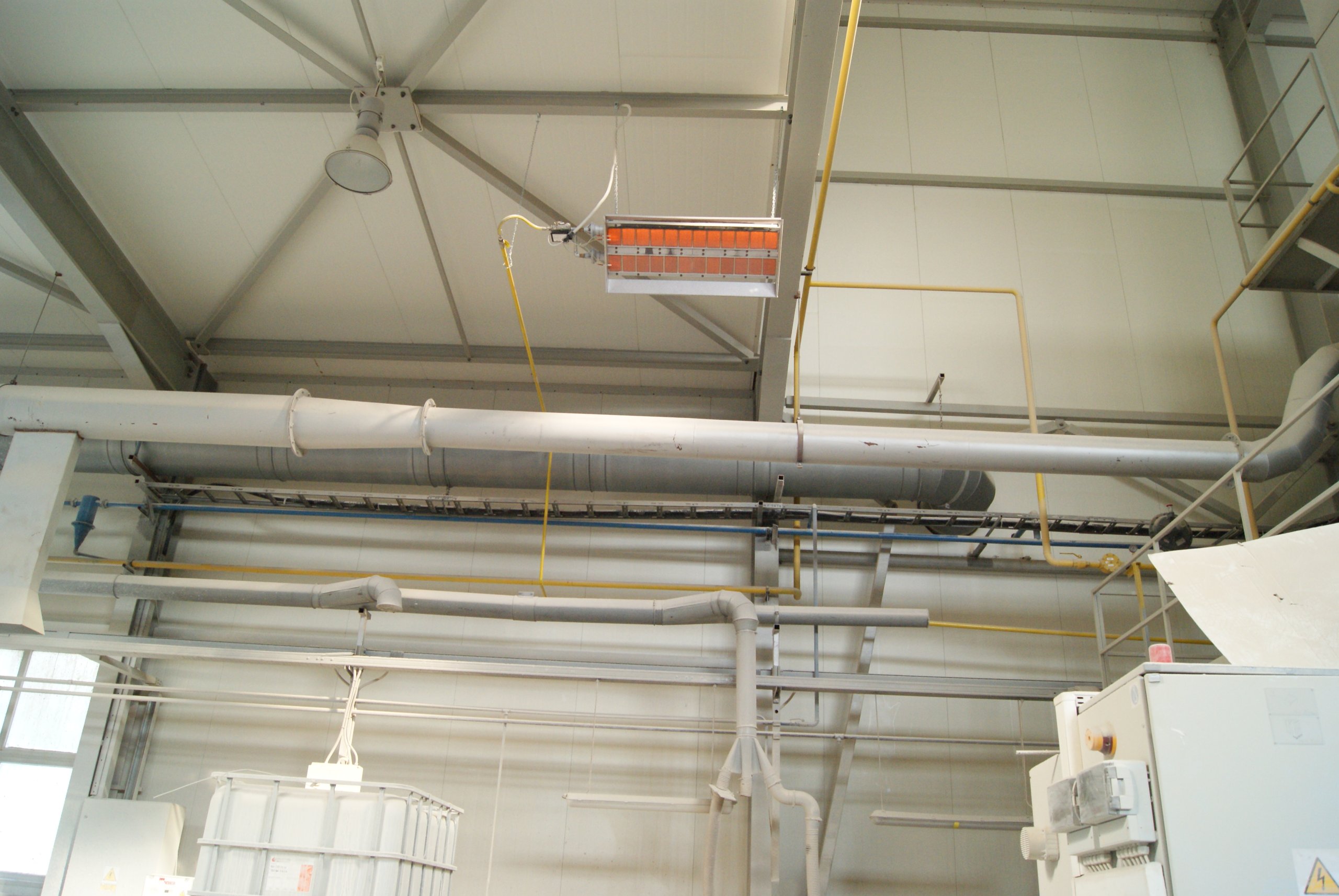

The electromagnetic wave does not heat the air (it does not cause its particles to move) without leading to the phenomenon of temperature stratification (heat loss) leading to static losses and higher heating costs compared to standard heating. Therefore, radiant heating will be the most effective and cost-effective for buildings: poorly insulated, large volumes and exposed to frequent ventilation.

Buildings can be heated partially, in designated areas for people to stay in a given period of time without the need to build partition walls.

The radiator has been tested to ensure high quality and to guarantee correct operation.

Promiennik gazowy ceramiczny 34,8 kW

Advantages of the SBC 12 + 12 gas heater:

     30-60% energy saving

     High level of security

     No air movement, dust and dust in the heated room

     Heat concentrated at floor level, in the people zone

     Fast start-up time and immediate heat effect

     Automatic adjustment

     Simple operation

     Easy and quick installation

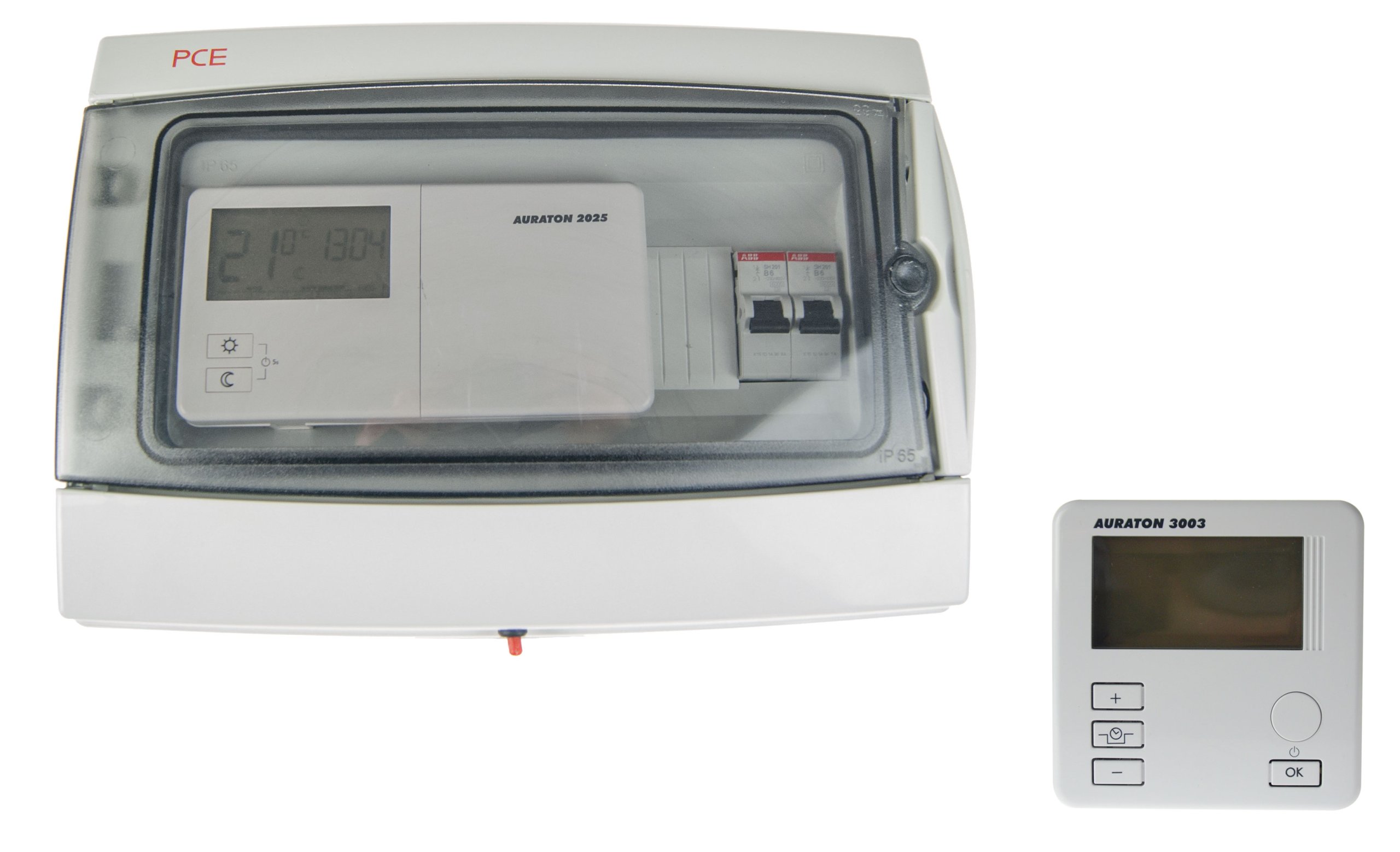

Two different automatic thermostats can be connected to the SBC. Drivers can be purchased in our online store.

1,Thermostat with weekly programmer in an IP65 certified box.
2,Simple thermostat with temperature setting. Turns off the heater when the set room temperature is reached. Cheap and easy to use.

Technical data:

Model: SBC 12 + 12

Number of tiles: 24

Power: 34.8 kW

Heated area: 100-120 m2

Gas consumption - Natural Gas: 3.42 m3 / h

Gas consumption - LPG gas: 4.5 kg / h

Electrical supply: 230V - 24VA

Dimensions [mm]:

     Radiant length: 1150
     Length of controller: 270
     Radiant width: 720
     Height: 255
     Weight (with packaging): 34 kg

User Manual
