Gas Convector Heater 5 kW HDU-5DKV with fan and cast iron chamber

Go to Product feedback

Compact, small gas stove powered by LPG cylinders or natural gas. 5kW power is enough to heat a room of about 45m2. The gas heater is equipped with a fan for better heat distribution and a cast iron closed combustion chamber to maintain the temperature of the stove very efficiently. It has an automatic thermostat with a regulation of 13 ° C-30 ° C.

Go to full description

Shipping

from $168.38 - Geis Palette 80x60 (Andorra)

$631.42

Wybierz wariant produktu:

Individual variants may differ in price

Type of gas:

Select

Propan - butan

Cylinder connector Optional

Select

2-cylinder connector (+180zł) (+$54.72)

3-cylinder connector (+230zł) (+$68.75)

Do not add

Length of chimney Optional

Select

60 cm

KonvekPro + thermostat Optional

Select

KonvekPro + thermostat Q7 (+$90.92)

KonvekPro + thermostat Q7RF (+$130.49)

KonvekPro + thermostat b400RF (+$173.43)

KonvekPro+ termostat wifi B400RF (+960zł) (+$220.58)

Do not add

Gas hose gas reducer Optional

Select

1.8mb + gas reducer + clamps (30zł) (+$8.42)

2mb gas hose clamped + gas reducer (120zł) (+$33.68)

Don't add

Mineral wool + aluminum tape Optional

Select

Add (+43zł) (+$12.07)

Don't add

Gas leak tester Optional

Select

Gas leak tester300ml (+26zł) (+$7.30)

Gas leak tester 55ml (+12zł) (+$3.37)

Don't add

Rosette Optional

Select

Rosette 160 mm (52 zł ) (+$14.59)

Do not add

Quantity

szt.

Availability:

full stock

Shipping time: 48 hours

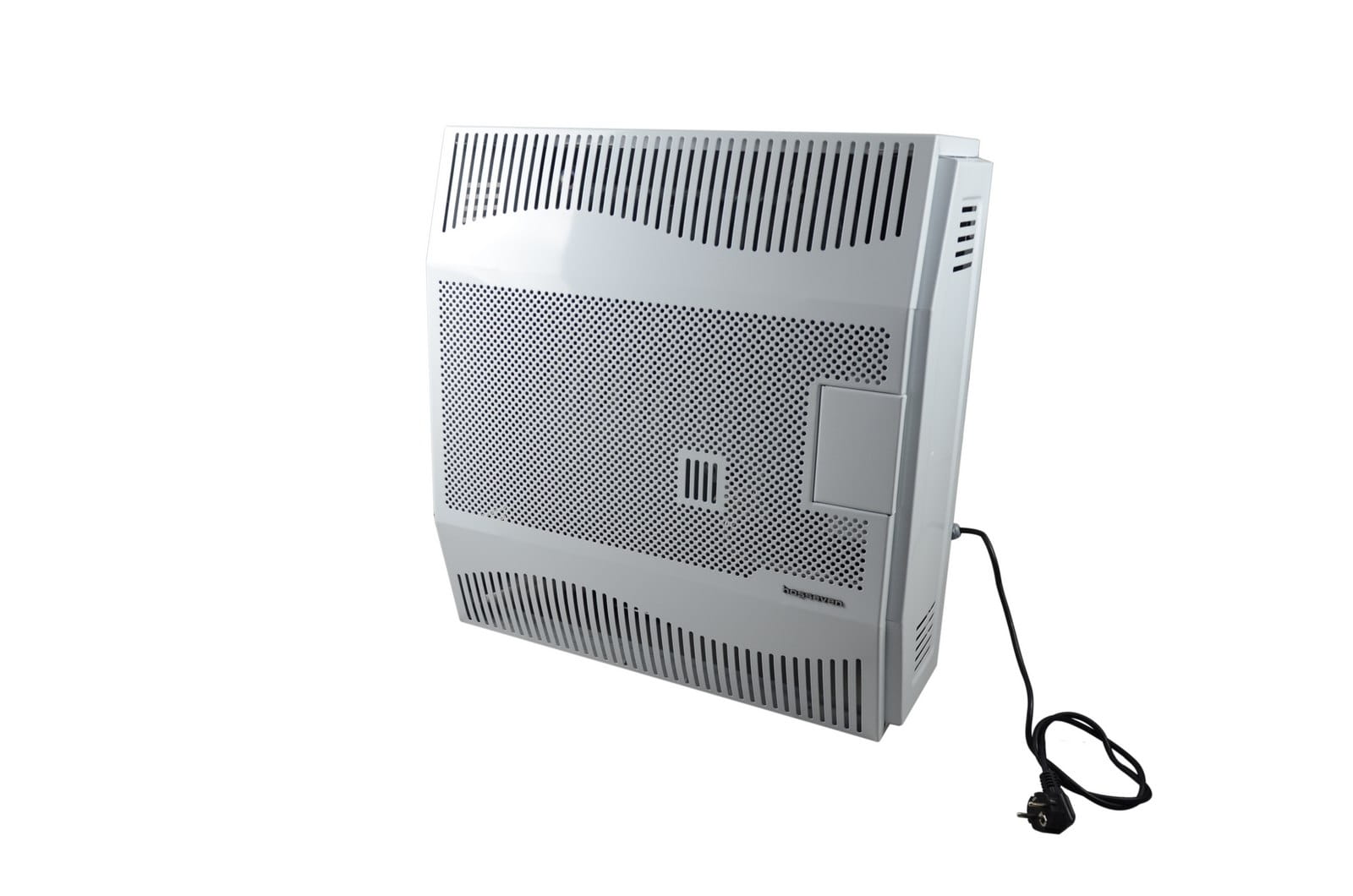

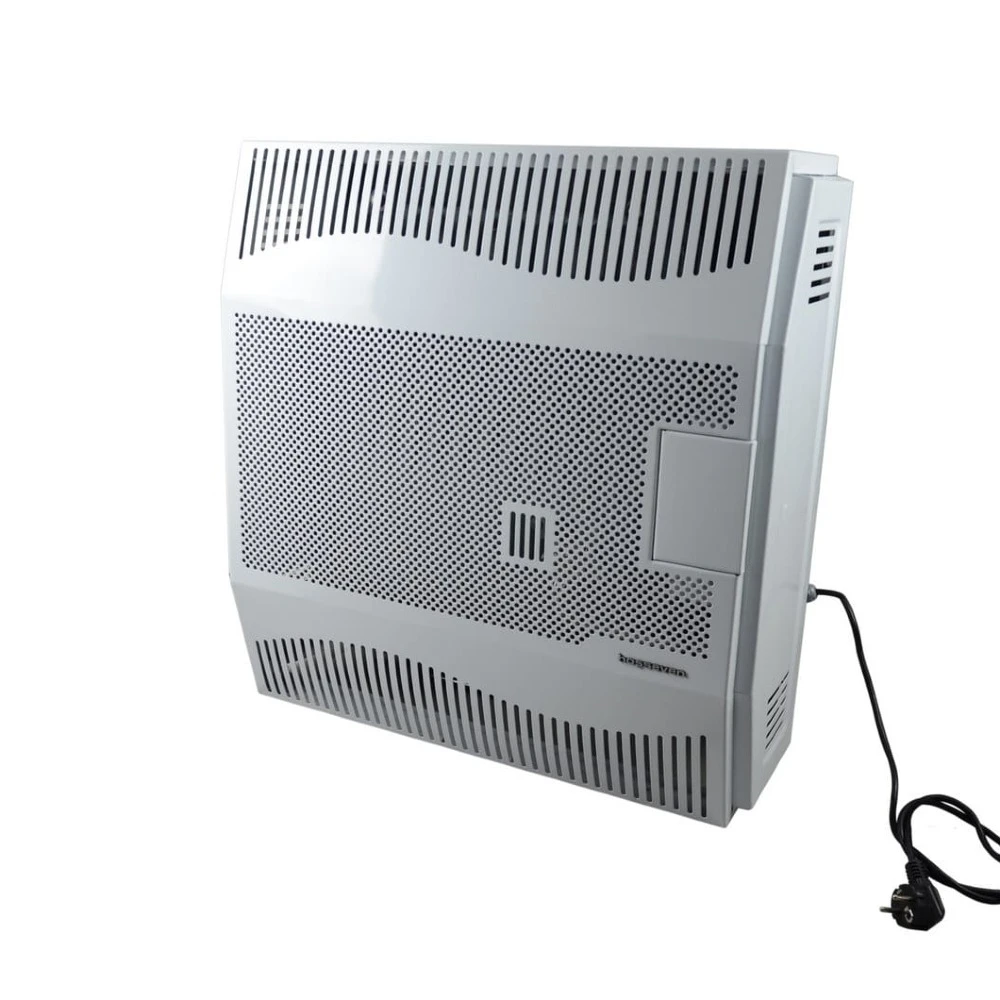

Gas convector HDU 5 DKV

Gas heater with a power of 5 kW with a cast iron combustion chamber, a fan and a chimney (exhaust outlet / air intake).

The convector of the HDU 5 DKV series has a minimalist design. It will complement the decoration of your room.

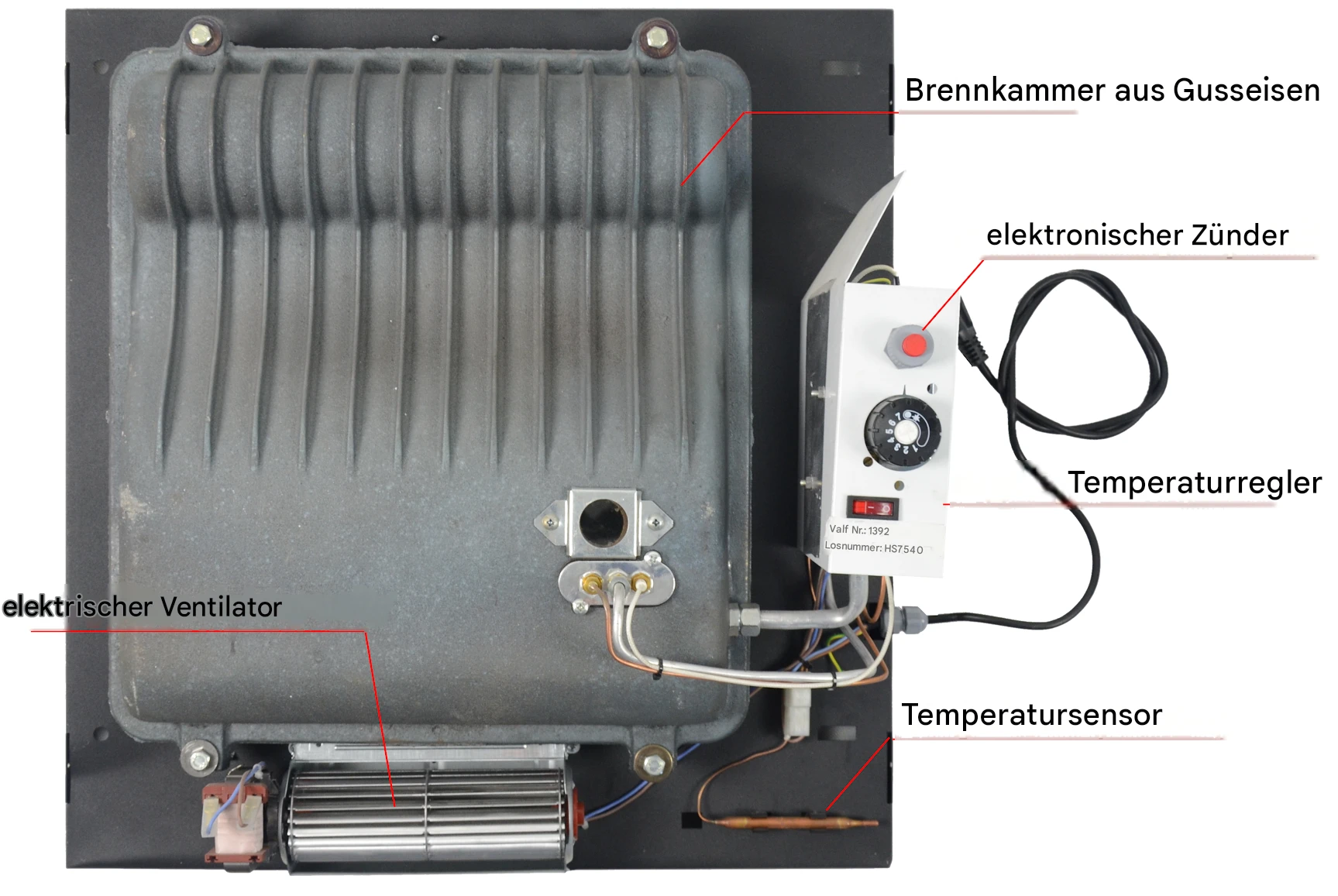

The burner is modulating. It has a cast iron heat exchanger, which is called the combustion chamber. Cast iron
The heat exchanger is characterized by high durability, thermal accumulation - the ability to accumulate heat, and high thermal stability depending on thermal accumulation, i.e. the ability to keep heat for a long time despite the end of the heating process.
The gas burns inside the closed combustion chamber, thanks to which it does not draw air from inside. The exhaust is ejected and air is taken in through a double chimney - a pipe in a pipe.
The gas stove is powered by natural gas, propane, or propane-butane (LPG).

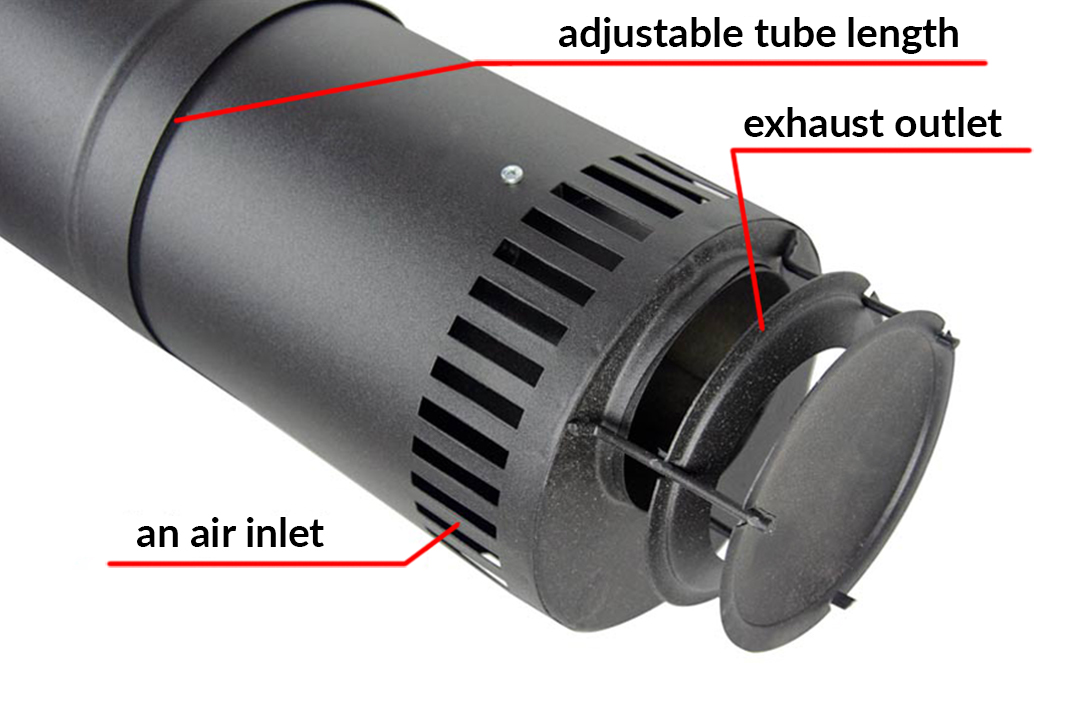

The tube-in-tube system ensures ease of installation and safety of use. The flue gas is vented to the outside of the room through an internal pipe with a smaller diameter. The external pipe takes the oxygen necessary to burn the gas. This solution also guarantees a lower chimney temperature.

The heater has an adjustable thermostat on which the user sets the desired temperature. After reaching the set temperature, the stove automatically turns off and only the remote control is on. The thermostat has a 7-step adjustment. The gas stove allows for quick heating of the room, thanks to the built-in fan. Suitable for rooms with an area of 20 to 50 m2. The stove was made in Turkey.

Piecyk gazowy z wentylatorem z butlą

Advantages of gas heater HDU 5 DKV :

Compact size.
Flame modulation. The flame is modulated by the Eurosit valve. When approaching the set temperature on the thermostat, the flame decreases and gas consumption decreases.
It is powered by natural gas or LPG (propane-butane).
Built-in thermostat enabling 7-step temperature adjustment, ranging from 13 ° C to 35 ° C
The burner is made of stainless steel, which makes it durable. The gas is burned with a blue flame with high thermal efficiency.
It has an electronic igniter on 1 AA batteries and has a pilot flame - a kind of standby state of a gas heater
In the event of a flame failure on the burner, the magnetic valve will shut off the gas supply.
The gas convector does not consume oxygen in the room, so it can be safely used in living quarters.
The mounted fan effectively and efficiently distributes heat.
The combustion chamber is covered with enamel, which significantly increases temperature resistance and guarantees a longer service life.
The hermetic gas convector is made in accordance with European Standards (EN), has CE certificate and TS EE 613 quality certificate.
It has an exhaust chimney / air inlet with a length of 60 cm. The chimneys are adjustable and can be shortened.

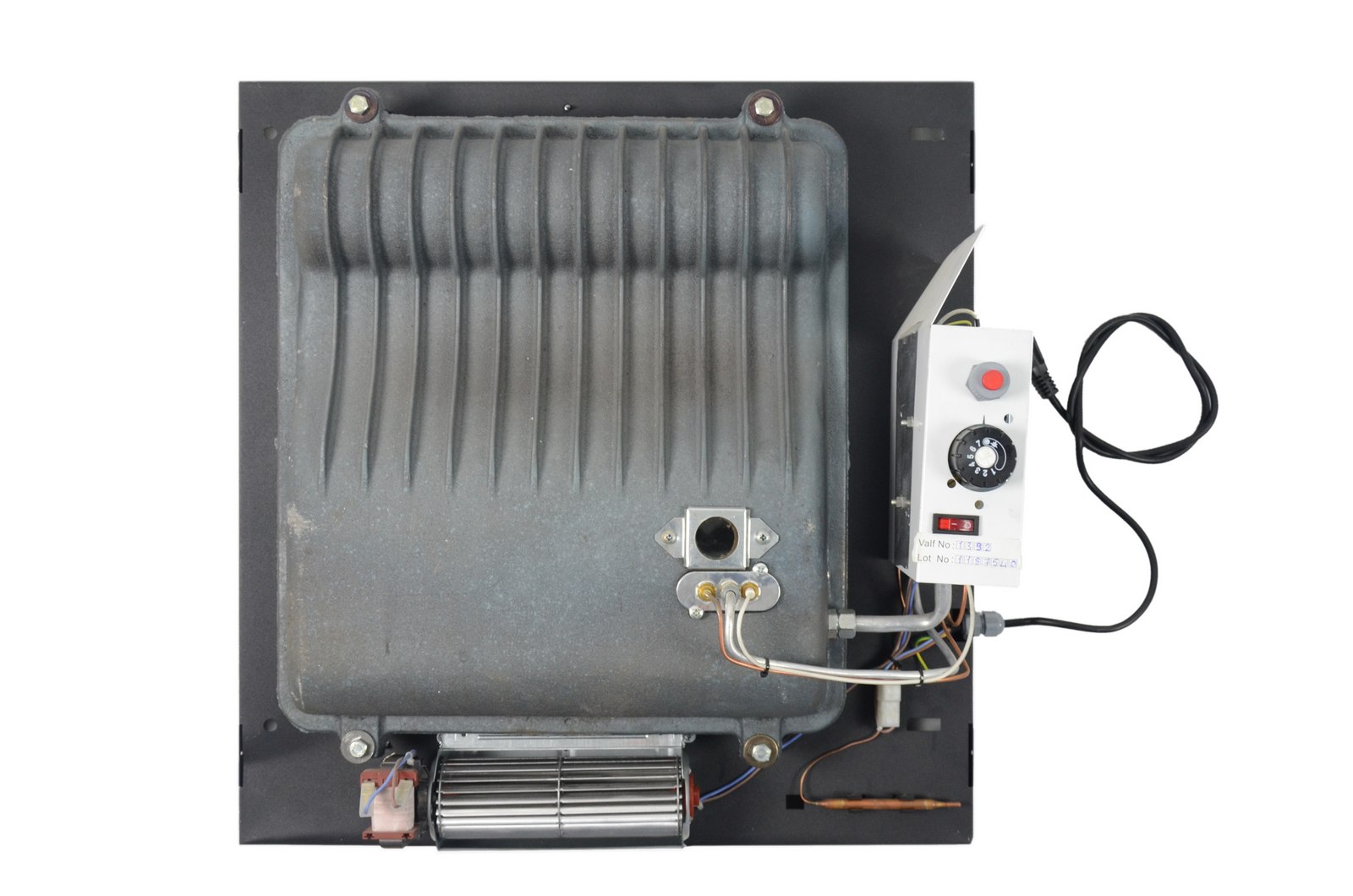

Balanced Flue Fan Assisted Gas Convector Heater

Thermostats - types of stove control:

Mechanical thermostat - this is the simplest way to control the operation of the gas stove. It is controlled by a knob with a continuously adjustable range of 10°C-30°C. In the thermostat of the stove there is a sensor (a copper cartridge containing an expanding liquid connected to the thermostat by a capillary) of the room temperature. When the sensor detects that the room temperature is close to that set on the thermostat it will reduce the gas stove's burner power or turn it off.

The heater's thermostat is modulating, which means that the

Mechanical controlled thermostat "KonvekPro" together with a programmable thermostat - more efficient control of the gas stove. "KonvekPro" is a controller that directly controls the operation of the gas heater. It gets information from the programmable thermostat, on which you set the expected temperature - regulation 5 ° C-25 ° C and the hours of operation of the stove. "KonvekPro", as required, heats the sensor of the mechanical thermostat in the gas convector, which closes or limits the supply of gas to the burner. This allows us to save gas, to use the stove more conveniently. The whole set of "KonvekPro" and programmable thermostat is easy to install, you can do it yourself. It can be used to upgrade a new gas convector purchased from our store, as well as the gas stove you already have.

Controlled mechanical thermostat "KonvekPro" together with Wi-Fi programmable thermostat - even more efficient, convenient and easier to control the gas stove via wifi thermostat. "KonvekPro" is a controller that directly controls the operation of the gas heater. It gets information from the programmable thermostat, on which you set the expected temperature - regulation 5 ° C-25 ° C and the hours of operation of the stove. The operating schedule of the gas convector is set daily and/or weekly. In this case, we can choose to set the schedule through the phone app and through the thermostat control panel. It is designed to modernize new gas convectors purchased in our store, as well as for already owned heaters.
